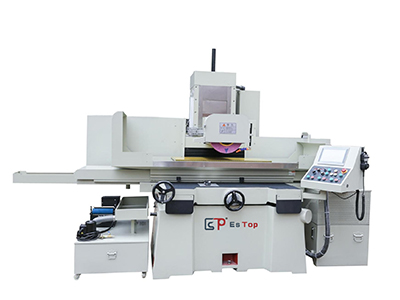

Saddle Type Surface Grinding machine ETA-60120
| Main item | Saddle Type Surface Grinding machine | Unit | PCA-60120 | PCA-60125 |
| Worktable | Electromagnet table size(x*y) | mm | 1200x600 | 1250x600 |
| Left and right Xaxis travel | mm | 1400 1500 | ||
| Front/back Y axis travel | mm | 660 | ||
| Max center of wheel to table | mm | 495 | ||
| Worktable Maximum loading copacity | kg | 2500 | ||
| Table t-slot specification | mm*n | 18x 3 | ||
| Worktable feed speed | m/min | 5-30 | ||
| In front and back Feed | Front/back Automatic feed | mm | 0.02-5 | |
| Front/back（50HZ/60HZ) Fast moving speed | mm/min | 990/1190 | ||
| Grinding wheel | Grinding wheel size max | mm | 350x 127 x 20-50 | |
| （50HZ/60HZ) Grinding wheel speed | R.P.M | 1450/1740 | ||
| Z axis Up and down | Up/down Fast moving speed | mm/min | 230 | |
| Motor | Spindle motor | HP*P | 15x4 | |
| Up and down, The Z axis motor | W | 750 | ||
| Hydraulic motor | HP*P | 5x 6 | ||
| Cooling motor | W | 90 | ||
| In front and back servo, The Y axis motor | W | 2000 | ||
| Machine Size | Machine Tool Profile size L*W*H | mm | 3560x2480 x 2360 | |
| Weight | kg | ≈5200 | ≈5300 | |
