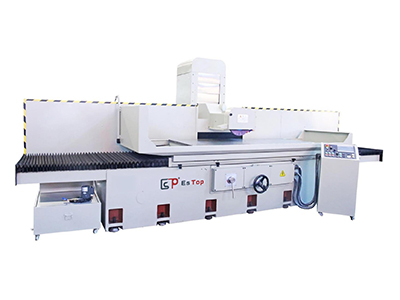

Column movable Surface Grinding machine ETD-80300AHD

Product Category

ETD-80300AHD Estop Machinery Automatic Surface Grinding Machine for Metal Working High Precision Heavy Duty Grinder Same Quality as Kent

These series,column type surface grinding machine, are featured by various kind ranging from 300~800mm of cross working width to 800mm passed the limit of single column mode based on accumulated know-how derived from long experience.

?Suitable for wide range of grinding from heavy grinding to precision grinding

- Maintenance of high strength due to high-elasticity structure of base, column and table

?Convenient grinding operating by ergonomic design

- Handle intensively arranged on the front of base

- Cross movement Set-up is possible on Control panel

- Easy and convenient operation

Main item	Column movable Surface Grinding machine	Unit	PCD-80300	PCD-80400

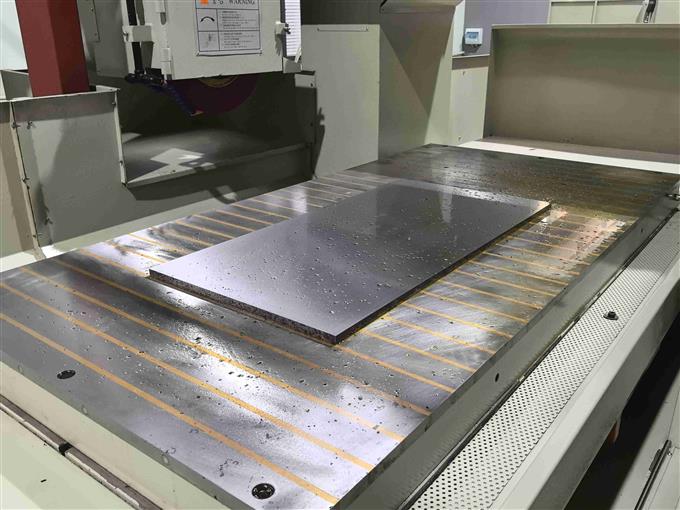

Worktable	Electromagnet table size(x*y)	mm	3000x800	4000x800
	Left and right Xaxis travel	mm	3200 4200
	Front/back Y axis travel	mm	870
	Max center of wheel to table	mm	560
	Worktable Maximum loading copacity	kg	3000
	Table t-slot specification	mm*n	18x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Hand wheel feed degree scale	mm	0.02/5
	Front/back Automatic feed	mm	0.1-8
	Front/back（50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	350x127 x20-50
	（50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm	0.005/0.2
	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	15x4
	Up and down, The Z axis motor	W	1/4x 6
	Hydraulic motor	HP*P	10x6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	1/4x6
Machine Size	Machine Tool Profile size LWH	mm	8200 x 3050 x 2250 11000 x 3050x2250
	Weight	kg	≈12000	≈13500
