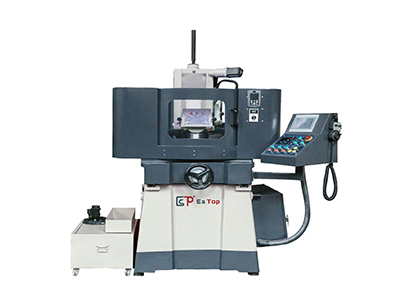

Saddle Type Rotary Surface Grinding machine ETA-200
| Main item | Saddle Type Rotary Surface Grinding machine | Unit | PCA-200 |
| Worktable | Electromagnet table size(x*y) | mm | OD 200 |
| Front/back Y axis travel | mm | 220 | |
| Max center of wheel to table | mm | 365 | |
| Worktable Maximum loading copacity | kg | 100 | |
| In front and back Feed | Front/back Hand wheel feed degree scale | mm | 0.02/5 |
| Front/back Automatic feed | mm 0.1-8 | ||
| Front/back（50HZ/60HZ) Fast moving speed | mm/min | 990/1190 | |
| Grinding wheel | Grinding wheel size max | mm | 180 x 31.75 x 12.5 |
| （50HZ/60HZ) Grinding wheel speed | R.P.M | 2850/3360 | |
| Z axis Up and down | Up/down Hand wheel feed degree scale | mm 0.005/1 | |
| Up/down Fast moving speed | mm/min | 230 | |
| Motor | Spindle motor | HP*P 2x2 | |
| Up and down, The Z axis motor | W | 750 | |
| Cooling motor | W | 40 | |
| In front and back servo, The Y axis motor | W | 750 | |
| Machine Size |
Machine Tool Profile size L*W*H | mm | 1500 x 1450 x 1820 |
| Weight | kg | ≈1000 | |
