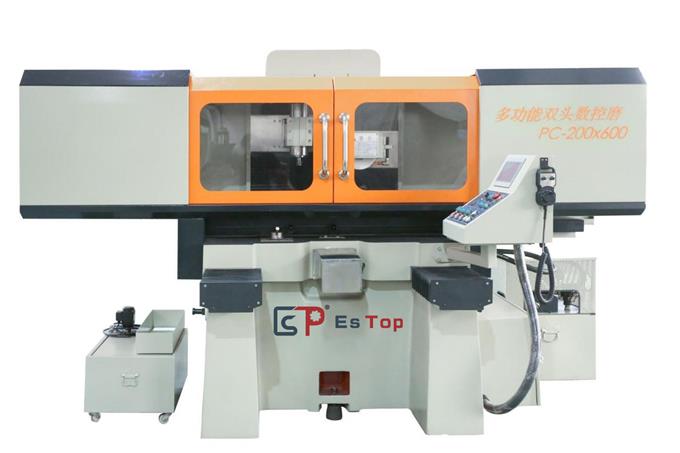

ETA260NC EsTop multi-functional twin head grinding machine
| Main item | Saddle Type Surface Grinding machine | Unit | ETA-260 |
| Worktable | Electromagnet table size(x*y) | mm | 600x 200 |
| Left and right Xaxis travel | mm 720 | ||
| Front/back Y axis travel | mm | 220 | |
| Max center of wheel to table | mm 425 | ||
| Worktable Maximum loading copacity | kg | 500 | |
| Table t-slot specification | mm*n | 14x1 | |
| Worktable feed speed | m/min | 5-30 | |
| In front and back Feed | Front/back Hand wheel feed degree scale | mm | 0.02/5 |
| Front/back Automatic feed | mm | 0.1-8 | |
| Front/back（50HZ/60HZ) Fast moving speed | mm/min | 990/1190 | |
| Grinding wheel | Grinding wheel size max | mm | |
| （50HZ/60HZ) Grinding wheel speed | R.P.M | 2850/3360/2400 | |
| Z axis Up and down | Up/down Hand wheel feed degree scale | mm | 0.005/1 |
| Up/down Fast moving speed | mm/min | 230 | |
| Motor | Spindle motor | HP*P/W | 2 x2/3200 |
| Up and down, The Z axis motor | W | 750 | |
| Hydraulic motor | HP*P | 1.5x6 | |
| Cooling motor | W | 40 | |
| In front and back servo, The Y axis motor | W | 750 | |
| Machine Size | Machine Tool Profile size L*W*H | mm | 3420x 1490 x 2180 |
| Weight | k | ≈2350 | |
.jpg)
.jpg)
.jpg)
.jpg)
