Items

Name

Specification

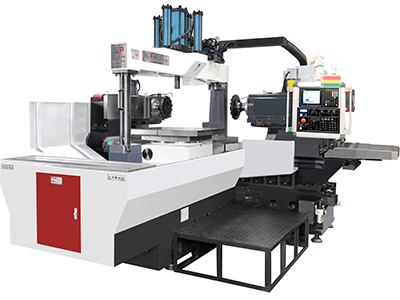

ESTOP TWIN-HEAD CNC MILLING MACHINE TH-1300NCG

TH-1300NCG

Cutting capacity

Control axis number

4

Cutting capacity mm

2*3

Cutting width  mm

150-1300

Worktable

Dimensions  mm

800*800

Max loading weight

5000

Spindle

Spindle speed(Infinitely variable speeds) rpm:

50-500

Spindle power  KW

2*18

Spindle taper

NT50

Cutting diameter  mm

300

X axis

X/Y/Z axis motor power

3/3/3

Y axis

X/Y/Z Max feed speed m/min:

5000/5000/5000

Z axis

X/Y/Z Max cutting speed

3000/3000/3000

Accuracy

Squareness mm/300mm

0.02

Accuracy for dimension mm/300mm

0.02

Tank capacity

Hydraulic oil tank  L

100

Lubrication oil tank  L

3

Power

Power

AC380V/200  50KVA

Net weight

Machine net weight KG

18000

Space

Machine layout space meter

6X6

Sort

Name

Quantity

Origin

Remark

  Machinery

Worktable ball screw

3

Taiwan TBI

Steady transmission, High accuracy, wear-proof

Guide rail

3

High frequency hardened rail of Quenching

Good bearing, Heavy cutting

Main Spindle (Horizontal)

2

BH/FY

Low noise, high strength, Taiwan famous brand

Flexible stainless steel plate shield of worktable

2

Domestic

High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.

Base casting

1

HT300

Good stability, excellent wear-ability

Automatic lubricating machine

1

Domestic

Electronic-self-lubrication, Quantitative oil supply to the each part

Oil line

3

Domestic

Copper tube

Bearing

12

Japan NSK

World famous brand, High accuracy, High quality

Electrical appliances

CNC system

1

LNC

Top brand of CNC in Taiwan

Servo motor

3

MK

Top brand of CNC in Taiwan

High precision rotary table

1

 QX or FY

Taiwan famous brand, High accuracy

Spindle motor

2

MK/Invot

Multitronic, Meet the requirements of different processing speed

AC contactor

5

Schneider

Famous brand, steady property

Relay

20

Schneider
