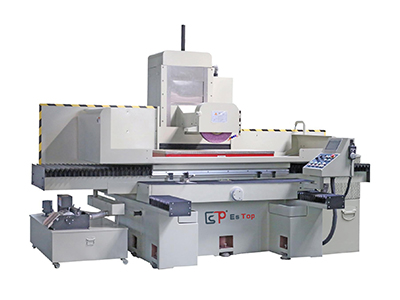

Column movable Surface Grinding machine ETD-60120NC

Product Category

These series,column type surface grinding machine, are featured by various kind ranging from 300~800mm of cross working width to 800mm passed the limit of single column mode based on accumulated know-how derived from long experience.

?Suitable for wide range of grinding from heavy grinding to precision grinding

- Maintenance of high strength due to high-elasticity structure of base, column and table

?Convenient grinding operating by ergonomic design

- Handle intensively arranged on the front of base

- Cross movement Set-up is possible on Control panel

- Easy and convenient operation

Main item	Column movable Surface Grinding machine	Unit	PCD-60100	PCD-60120
Worktable	Electromagnet table size(x*y)	mm	1000x600	1200x 600
	Left and right Xaxis travel	mm	1250 1400
	Front/back Y axis travel	mm	660
	Max center of wheel to table	mm	560
	Worktable Maximum loading copacity	kg	2500
	Table t-slot specification	mm*n	18x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Hand wheel feed degree scale	mm	0.02/5
	Front/back Automatic feed	mm	0.1-8
	Front/back（50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	$350x$127 x 20-50
	（50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm	0.005/0.2
	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	15x4
	Up and down, The Z axis motor	W	1/4x6
	Hydraulic motor	HP*P	5x 6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	1/4x6
Machine Size	Machine Tool Profile size LWH	mm	3500 x 2600 x2150
	Weight	kg	≈5800	≈6000

tags : Grinding / machine

Saddle Type Surface Grinding machine ETA-4080NC

VM-1830NC CNC Precision Vertical Milling machine

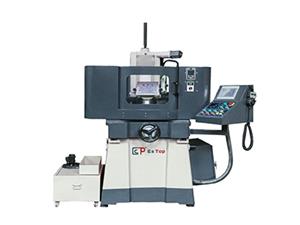

Saddle Type Surface Grinding machine ETA-3060

VM-1825NC CNC Precision Vertical Milling machine

Horizontal grinding wheel spindle grinders ETW-50100NC

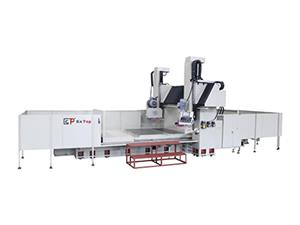

Double Column Type Surface Grinding machine ETLD-2560NC
