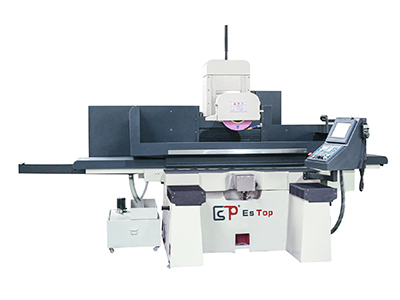

Horizontal grinding wheel spindle grinders ETW-4010NC

Product Category

This series of machine tools adopts a movable grinding head structure, special designed for heavy duty grinding, which uses the periphery of the grinding wheel to grind the surface of the workpiece. It is suitable for grinding the plane of various parts in industries such as machinery manufacturing, automobiles, mould steel plate, tools, and other industries.

1. The overall casting of the bed ensures good rigidity and stable and reliable operation.

2. The longitudinal movement of the workbench is hydraulically driven, with stepless speed regulation.

3. The horizontal guide rail of the carriage adopts a steel guide rail structure, with good wear resistance and stable accuracy.

4. The grinding wheel spindle is driven by an external low vibration motor and operates smoothly.

Continuous automatic lubrication is used for the bed and workbench rails, and inching lubrication is used for the columns, carriage, and grinding head rails to effectively prevent oil loss and strain of the rails.

Main item	Horizontal grinding wheel spindle grinders	Unit	PCW-3069	PCW-40100
Worktable	Electromagnet table size(x*y)	mm	690x 300	1000x400
	Left and right Xaxis travel	mm	800	1200
	Front/back Y axis travel	mm	380	480
	Max center of wheel to table	mm	460
	Worktable Maximum loading copacity	kg	600	800
	Table t-slot specification	mm*n	14x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Automatic feed	mm	0.05-15
In front and back Feed	Front/back（50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	$350x $127 x 20-50
Grinding wheel	（50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm	0.01-0.08
Z axis Up and down	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	15x4
	Up and down, The Z axis motor	W	1000
	Hydraulic motor	HP*P	3x 6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	1000
Machine Size	Machine Tool Profile size LWH	mm		3060 x 1600 x 2300 3150 x 1600x 2300
Machine Size	Weight		3600	3700
