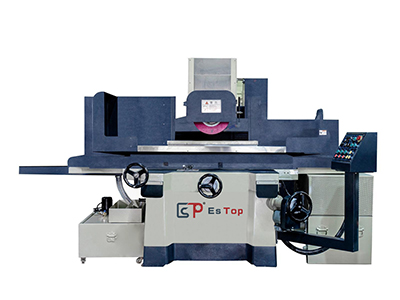

Saddle Type Surface Grinding machine ETA-4080NC

Product Category

Main item	Saddle Type Surface Grinding machine	Unit	PCA-4080NC
Worktable	Electromagnet table size(x*y)	mm	800x400
	Left and right Xaxis travel	mm 950
	Front/back Y axis travel	mm	460
	Max center of wheel to table	mm 505
	Worktable Maximum loading copacity	kg	600
	Table t-slot specification	mm*n	14x 3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Automatic feed	mm 0.1-8
In front and back Feed	Front/back（50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	◇350 x127x 20-50
Grinding wheel	（50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	10x4
	Up and down, The Z axis motor	W	750
	Hydraulic motor	HP*P	3x6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	80/1000
Machine Size	Machine Tool Profile size LWH	mm	2570 x 2320x2360
Machine Size	Weight	kg	≈3000
