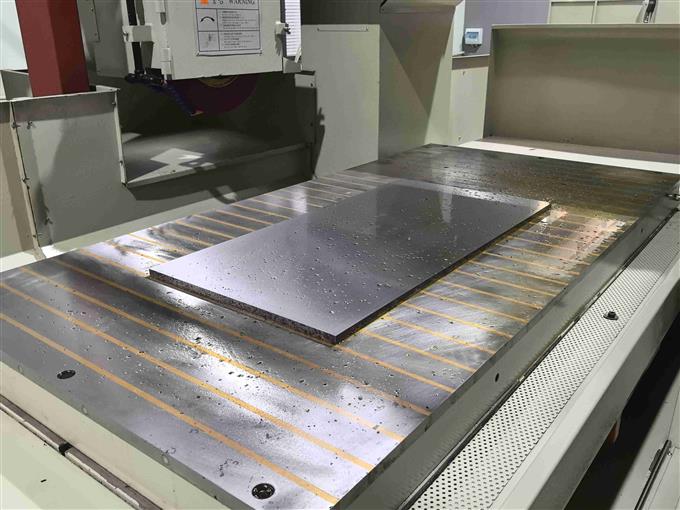

Saddle Type Surface Grinding machine ETA-50100
| Main item | Saddle Type Surface Grinding machine | Unit | PCA-50100 | PCA-50120 |
| Worktable | Electromagnet table size(x*y) | mm | 1000x500 | 1200x500 |
| Left and right Xaxis travel | mm | 1200 1400 | ||
| Front/back Y axis travel | mm | 560 | ||
| Max center of wheel to table | mm | 495 | ||
| Worktable Maximum loading copacity | kg | 700 | ||
| Table t-slot specification | mm*n | 18x3 | ||
| Worktable feed speed | m/min | 5-30 | ||
| In front and back Feed | Front/back Automatic feed | mm | 0.1-8 | |
| Front/back（50HZ/60HZ) Fast moving speed | mm/min | 990/1190 | ||
| Grinding wheel | Grinding wheel size max | mm | ◇350 x 127 x 20-50 | |
| （50HZ/60HZ) Grinding wheel speed | R.P.M | 1450/1740 | ||
| Z axis Up and down | Up/down Fast moving speed | mm/min | 230 | |
| Motor | Spindle motor | HP*P | 10x4 | |
| Up and down, The Z axis motor | W | 750 | ||
| Hydraulic motor | HP*P | 3x 6 | ||
| Cooling motor | W | 90 | ||
| In front and back servo, The Y axis motor | W | 1500 | ||
| Machine Size | Machine Tool Profile size L*W*H | mm | 3200 x 2100x 2360 | |
| Weight | kg | ≈3800 | ≈3850 | |
.jpg)
