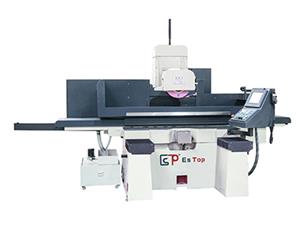

Saddle Type Surface Grinding machine ETA-3060
| Main item | Saddle Type Surface Grinding machine | Unit | PCA-3060 |
| Worktable | Electromagnet table size(x*y) | mm | 600x300 |
| Left and right Xaxis travel | mm | 720 | |
| Front/back Y axis travel | mm | 360 | |
| Max center of wheel to table | mm | 550 | |
| Worktable Maximum loading copacity | kg | 600 | |
| Table t-slot specification | mm*n | 14x1 | |
| Worktable feed speed | m/min | 5-30 | |
| In front and back Feed | Front/back Hand wheel feed degree scale | mm | 0.02/5 |
| Front/back Automatic feed | mm | 0.1-8 | |
| Front/back（50HZ/60HZ) Fast moving speed | mm/min | 990/1190 | |
| Grinding wheel | Grinding wheel size max | mm | $350x127x40 |
| （50HZ/60HZ) Grinding wheel speed | R.P.M | 1450/1740 | |
| Z axis Up and down | Up/down Hand wheel feed degree scale | mm | 0.005/1 |
| Up/down Fast moving speed | mm/min | 230 | |
| Motor | Spindle motor | HP*P | 7.5x4 |
| Up and down, The Z axis motor | W | 150/750 | |
| Hydraulic motor | HP*p | 2x6 | |
| Cooling motor | W | 90 | |
| In front and back servo, The Y axis motor | W | 80 | |
| Machine Size | Machine Tool Profile size L*W*H | mm | 2640 x 2080x 1820 |
| Weight | kg | ≈2000 |
