No.

Item.

Description

Specification

1

Model

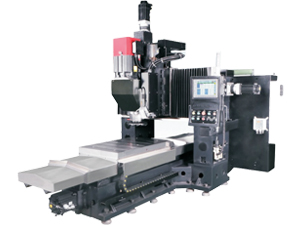

CNC vertical milling machine

VM-8015NC

2

Cutting capacity

Maximum machining length（mm）

1500

Maximum machining width （mm）

1300

Maximum processing height （mm）

290

3

Worktable

Worktable size（mm）

1500*800

Max loading weight

4000

4

Spindle assembly

Spindle motor power KW

11

Spindle taper

BT50

Spindle speed (RPM)

50-500

5

Travelling speed

X axis moving speed   (mm/min)

0-8000

Y axis moving speed  (mm/min)

0-8000

Z axis moving speed   (mm/min)

0-8000

6

Motor power

X,Y,Z axis motor (KW)

3,3,3

Chips motor (KW)

0.2

7

Others

Machine height (mm)

2100

Machine Size (mm)

4500*2900

Machine weight( Kg)

7600

ITEM

SPECIFICATIONS

QUANTITY

UNIT PRICE

AMOUNT

Main

CNC Precision Vertical Milling machine

NC Controller Taiwan LNC

Model:VM-8015NC

1 set

Standard configuration

1.Electric permanent worktable

2. Air cooling system electric box

3. Workpiece automatic measuring

4. Automatic cutting system

5. Air pressure system, blowing and automatic measurement

6. Working Light

7. Working status indicator light

8. Nitrogen balance weight system

9. Man-machine conversation system, automatic protection, diagnosis, display

1 set

1 set

1 set

1 set

1set

1 set

1 set

1 set

1 set

1 set

1 set

Accessories

1. Face cutter 250mm

2. Transformer (380V to 220V)

3. Scrap car

1 set

1 set

1 set
