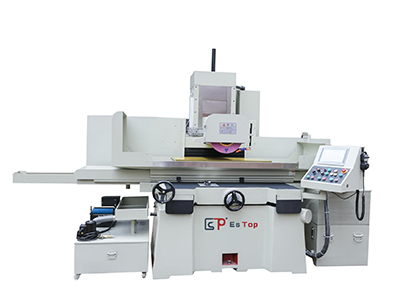

ETW-50100NC Sunny Style Low Energy High Precision Manual Control Surface Grinding Machine

This series of machine tools adopts a movable grinding head structure, special designed for heavy duty grinding, which uses the periphery of the grinding wheel to grind the surface of the workpiece. It is suitable for grinding the plane of various parts in industries such as machinery manufacturing, automobiles, mould steel plate, tools, and other industries.

1. The overall casting of the bed ensures good rigidity and stable and reliable operation.

2. The longitudinal movement of the workbench is hydraulically driven, with stepless speed regulation.

3. The horizontal guide rail of the carriage adopts a steel guide rail structure, with good wear resistance and stable accuracy.

4. The grinding wheel spindle is driven by an external low vibration motor and operates smoothly.

Continuous automatic lubrication is used for the bed and workbench rails, and inching lubrication is used for the columns, carriage, and grinding head rails to effectively prevent oil loss and strain of the rails.

Main item	Horizontal grinding wheel spindle grinders	Unit	ETW-50100	ETW-63125
Worktable	Electromagnet table size(x*y)	mm	1000x 500	1250x630
	Left and right Xaxis travel	mm	1200	1500
	Front/back Y axis travel	mm	580	710
	Max center of wheel to table	mm	490
	Worktable Maximum loading copacity	kg	900	1000
	Table t-slot specification	mm*n	18x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Automatic feed	mm	0.05-15
In front and back Feed	Front/back（50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	$350x $127 x 20-50
Grinding wheel	（50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm 0.01-0.08
Z axis Up and down	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	15x4
	Up and down, The Z axis motor	W	1500
	Hydraulic motor	HP*P	5x6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	1000
Machine Size	Machine Tool Profile size LWH	mm	3500 x 2700 x 2300
Machine Size	Weight		≈4800	≈4900
