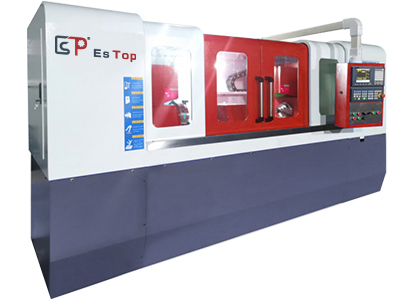

GD-1000NC Like Cheto Hot Selling High Precision CNC Automatic Horizontal Deep Hole Drilling
| Gun drilling machine models | AXIS-500 | AXIS-800 | AXIS-1000 | AXIS-1500 |
| Machining Aperture Range（mm) | 3-30 | 3-30 | 3-40 | 3-40 |
| Machining Depth（mm) | 500 | 800 | 1000 | 1500 |
| Clamping Outside Diameter（mm) | 80 | 80 | 100 | 100 |
| Spindle Speed（rpm) | 8000 | 8000 | 8000 | 8000 |
| Machining feed（mm) | 10-500 | 10-500 | 10-500 | 10-500 |
| Spindle Motor Power（KW) | 7.5 | 7.5 | 11 | 11 |
| Feed motor（KW) AC 2.3 | AC Servo 2.3 | AC Servo 3.0 | AC Servo 3.0 | |
| Oil Cooled motor（P) | 3 | 3 | 3 | 3 |
| Rotating Shaft Motor（KW) 0.75 | 0.75 | 0.75 | 1.0 | |
| High Pressure Oil Pump motor（KW) | 5.5 | 5.5 | 5.5 | 5.5 |
| Cutting pressure Pump（kg/cm3) 100 | 100 | 100 | 100 | |
| Oil pressure pumped oil quantity（liter/min)6-60 | 6-80 | 6-100 | 6-100 | |
| Cutting fluid filtration accuracy（u) | 15 | 15 | 15 | 15 |
| Total machine power（KW) | 23 | 26 | 28 | 28 |
| Storage Tank Volume（KG) | 600 | 600 | 600 | 600 |
| Machine Weight（KG) | 4000 | 4500 | 5200 | 5800 |
| Machine tool area | 3200x1500x1900 | 3200x1500x19000 | 4200x1500x1900 4 | 4200x1500x1900 |
