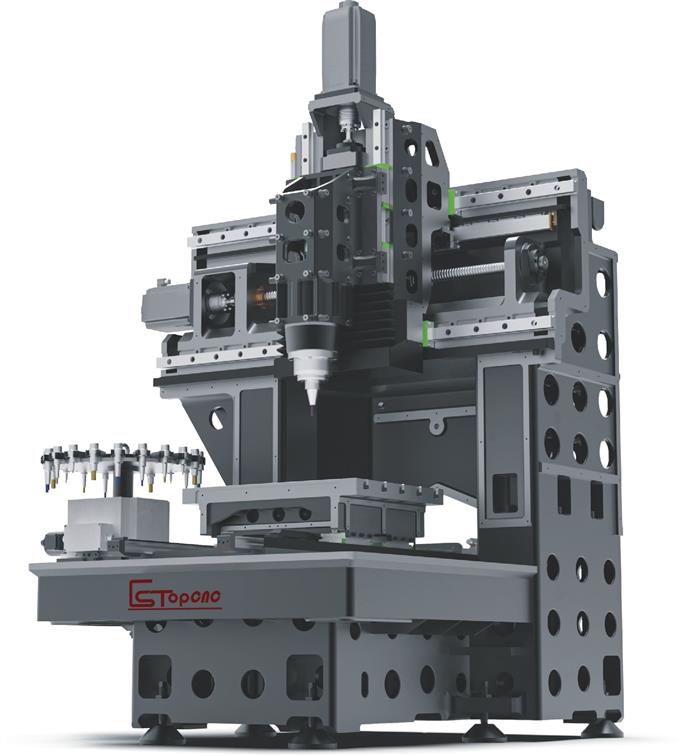

Type

Parameter

Unit

H6

Travel

X axis

mm

600

Y axis

mm

500

Z axis

mm

350

Distance from spindle end surface to working surface

mm

120-470

Gate width

mm

780

Max height

mm

395

Line rail wire rod

Line rail specifications

mm

X/Y/Z:45/45/3590 (INA)

Ball screw specifications

mm

X/Y/Z：4010 (NSK)

Load

Worktable dimension

mm

660*500

T-slot

mm

6-18/100

Table max loading capacity

kg

400

Spindle / ATC

(standard configuration)

Spindle

HSK E40

Inner Tibet electric spindle

Speed

rpm

30000 (Option 42000)

Spindle motor

kw

11

ATC

/

20T

Feed

X / Y / Z axis fast speed

m/min

30

X / Y / Z axis feed speed

m/min

12

Accuracy

positioning accuracy

mm/mm

±0.0025

Repeat positioning accuracy

mm/mm

±0.0015

Weight

Machine weight (approx.)

Kg

6500

Power supply

Power supply capacity (380V / 50 HZ)

KVA

20

Air Pressure

bar

6-8

Outline dimension

Length / Width / Height

mm

2200*2390*2500

Item

Name

Brand

1

Numerical control system

Siemens 828D

2

Three axis Ball screw

Japan NSK

3

Three axis Line rail

Germany INA

4

Spindle components

DM

5

Ball screw bearing

Japan NSK

6

clutch

Germany R + W (bellows type)

7

Main contactor

Schneider of France

8

Main pneumatic elements

Japan SMC

9

Source

Taiwan Ming wei

10

Main wire

Taiwan Xinguang-oil prevention hotline

11

lathe bed

DM

12

Expansion protective cover

Taiwan-funded

13

Measuring system for tool

Renishaw

14

Linear scales (LS187C-1540-840-740)

HEIDENHAIN

Item

Specifications

Quantity

1

Spindle blowing system

1 set

2

Tools cooling system

1 set

3

Full cover protective cover

1 set

4

Automatic lubrication system

1 set

5

Work light

1 set

6

Adjust the cushion blocks and the bolts

1 set

7

Cast box

1 set

8

water tan

1 set

9

Tools box

1 set

10

Tool holder + pulling nail

1 set

11

Lock tool seat

1 set
